[Q11-Q32] Try 100% Updated 4A0-114 Exam Questions [2023]

Rate this post

Try 100% Updated 4A0-114 Exam Questions [2023]

Pass 4A0-114 Exam – Real Questions and Answers

To prepare for the Nokia 4A0-114 exam, candidates can take advantage of a variety of resources. Nokia offers a range of training courses and study materials, including instructor-led courses, self-paced e-learning modules, and practice exams. Candidates can also find study materials and resources online, such as blogs, forums, and study groups. By using these resources, candidates can improve their knowledge and skills in BGP and increase their chances of passing the exam.

QUESTION 11
Which of the following is considered a best practice for BGP address planning?

Advertising external networks into IGP.

Using system addresses for setting up iBGP sessions.

Exporting the networks associated with the external links of eBGP peers into BGP.

Optimizing BGP route table by exporting IGP routes into BGP.

QUESTION 12
Which of the following pieces of information is NOT carried inside an EVPN IP-Prefix (type 5) route update associated with an EVPN VPLS?

The MAC address of an attached host.

The IP prefix of a subnet in the layer-3 domain that the VPLS belongs to.

The VPLS’s route-distinguisher and route-target values.

The VPLS’s service tunnel ID (MPLS label or VNI value).

QUESTION 13
What type of information does a type-2 EVPN route update carry?

It carries an IP prefix and its associated mask.

It carries an IP address and requests the MAC address of the corresponding host.

It carries a host MAC address and optionally the associated IP address that belongs to the same host.

It carries a host MAC address and optionally the IP prefix of the subnet where the host is located.

QUESTION 14
Which of the following statements about VXLAN encapsulation is TRUE?

It uses an MPLS label to identify the transport tunnel and a VXLAN Network ID (VNI) to identify the service tunnel.

It uses a VXLAN Network ID (VNI) to identify the transport tunnel and an MPLS label to identify the service tunnel.

It uses an additional IP header to identify the transport tunnel and a VXLAN Network ID (VNI) to identify the service tunnel.

It uses VXLAN Network ID (VNI) to identify the transport tunnel and an additional IP header to identify the service tunnel.

QUESTION 15
Which of the following statements about IPv6 Link-Local addresses is FALSE?

They are assigned to every physical interface running IPv6.

They are only valid for communication within the same broadcast domain.

They all have the same 64-bit subnet prefix.

They have an interface ID derived by default from the interface’s IPv4 address.

QUESTION 16
A BGP session is stuck in the “Connect” state. Which of the following is the most likely reason?

The remote BGP peer is properly configured but the local router is not.

The local router is properly configured but the remote BGP peer is not.

The BGP protocol is administratively disabled on the local router.

The BGP protocol is administratively disabled on the remote BGP peer.

QUESTION 17
Which of the following statements about BGP is FALSE?

Peers need to be IP reachable to establish a BGP session.

Route reflectors can reduce the number of iBGP sessions required.

iBGP peers have to be adjacent to each other.

The multihop parameter needs to be configured when eBGP peers are not adjacent to each other.

QUESTION 18
Which of the following regarding route reflectors is TRUE?

Only the route reflector is configured with a cluster id.

There can only be one route reflector in a cluster.

Clients should have iBGP sessions with each other to maintain the mesh.

There can only be one level of route reflectors in the topology.

QUESTION 19
A TCP connection fails to be established with a BGP peer. Which of the following are valid options for the BGP connection state?

Idle or Connect

Idle or Active

Connect or Active

Connect or Open Sent

QUESTION 20
Which of the following statements about BGP is FALSE?

BGP uses Hello messages to dynamically discover BGP peers.

To establish a BGP session, a TCP session must first be established between the two routers.

BGP uses the OPEN message to exchange capability parameters between routers.

BGP was originally designed as an exterior routing protocol.

QUESTION 21

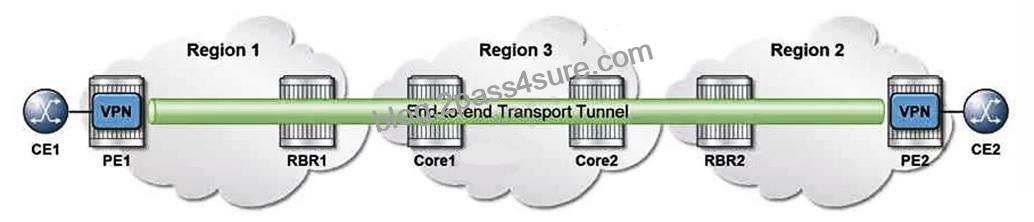

In the diagram below, an end-to-end transport tunnel needs to be established between PE1 and PE2 using MP-BGP. Which of the following items is NOT required?

MP-BGP address families label-ipv4 or label-ipv6 need to be supported on each of the edge routers.

Either RSVP, LDP, or segment routing tunnels need to be established between regions.

Either RSVP, LDP, or segment routing tunnels need to be established within each region.

Each PE router needs to advertise an IP address as a labeled BGP route to identify the tunnel endpoint.

QUESTION 22
On the Nokia 7750 SR, which of the following is NOT an address family that BGP supports?

IPv4

VPN-IPv4

Label-IPv4

MP-EVPN

QUESTION 23
Which of the following statements about route reflector clusters is FALSE?

Multiple clusters may be configured within an AS.

Within an AS, route reflectors belonging to different clusters do not need to be fully-meshed among themselves.

A router can be the client of multiple route reflectors within its AS.

When a route reflector reflects a route, it adds its cluster ID to the Cluster_list attribute.

QUESTION 24

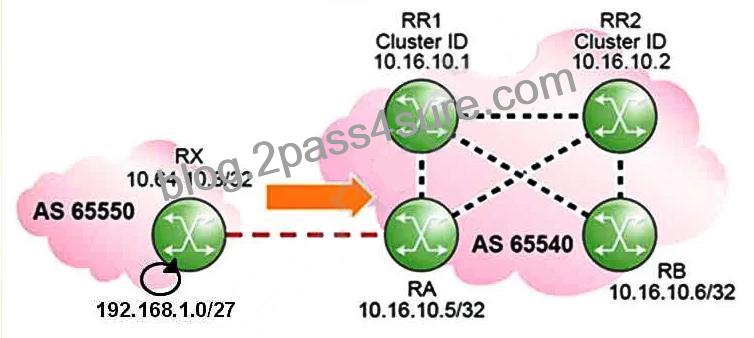

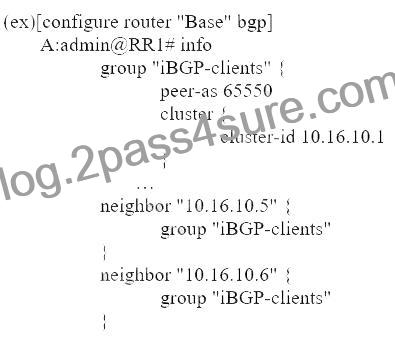

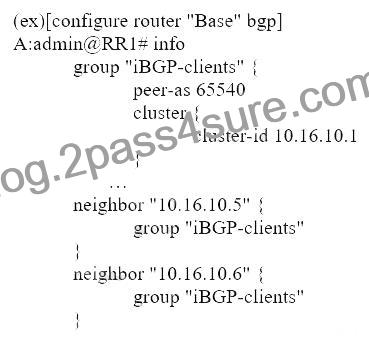

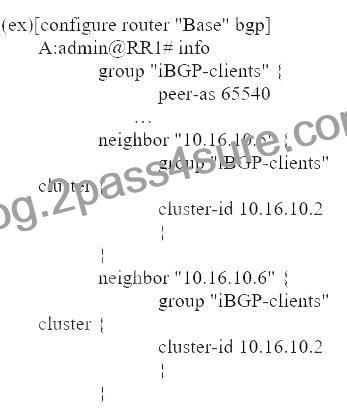

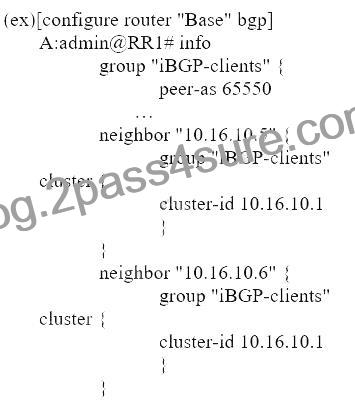

Given the network shown, which of the following is the correct BGP configuration for RR1?

QUESTION 25
Which of the following statements regarding BGP shortcuts is FALSE?

MPLS tunnels are used to carry transit traffic across the network.

A full mesh of iBGP peering sessions is not required,

Edge and transit routers need to be configured with BGP.

The transit routers need to support LDP or RSVP-TE LSPs.

QUESTION 26
Which of the following statements about BGP peering sessions is FALSE?

BGP peers need IP reachability between them.

iBGP peers can be non-adjacent.

eBGP peers have to be adjacent to each other.

BGP peers can be configured with different AS numbers.

QUESTION 27
Which of the following regarding BGP Path Identifier is FALSE?

Path-ID is a four-octet identifier pre-pended to the NLRI field of a BGP update.

Path-ID is an optional transitive attribute used to advertise multiple paths.

Path-ID uniquely identifies each path advertised to a neighbor.

A BGP speaker that re-advertises a route must generate its own Path-ID.

QUESTION 28

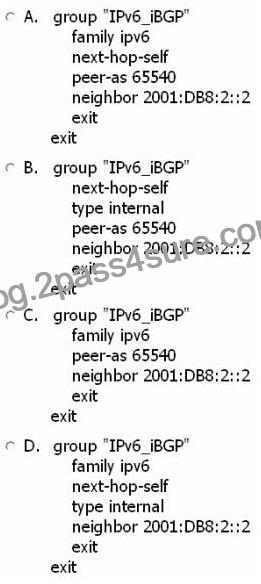

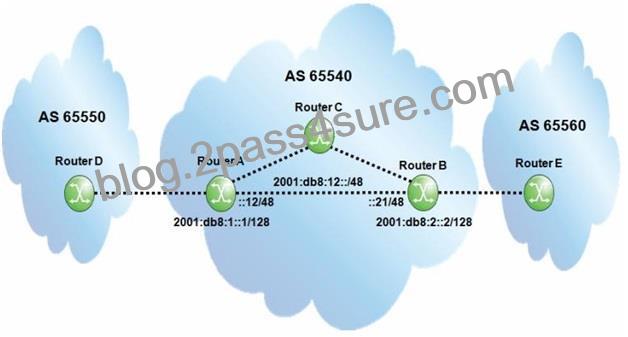

Click the exhibit.

Assume all router-IDs are properly configured, and global IPv6 addresses are used to establish eBGP sessions.
Which of the following configurations is required on router A so that router B can exchange traffic with router D?

Option A

Option B

Option C

Option D

Loading …

The Nokia 4A0-114 certification exam is a comprehensive test that requires a deep understanding of BGP and its various features. Candidates must demonstrate their ability to configure BGP in a service provider or enterprise environment, troubleshoot common issues, and optimize BGP performance. This certification is recognized worldwide and is highly valued by employers in the networking industry. Achieving the Nokia 4A0-114 certification demonstrates a candidate’s expertise in BGP and their commitment to advancing their skills and knowledge in the field of networking.
