Easily To Pass New 200-301 Premium Exam Updated [Nov 20, 2024]

200-301 Certification All-in-One Exam Guide Nov-2024

Network Fundamentals Explained!

First things first, you will be expected to explain the role and significance of network components. This topic will also require you to compare cabling types and physical interface, compare UDP and TCP, configure IPv6 prefix and addressing, explain wireless principles, describe the fundamentals of virtualization, and describe the concepts of switching among the rest.

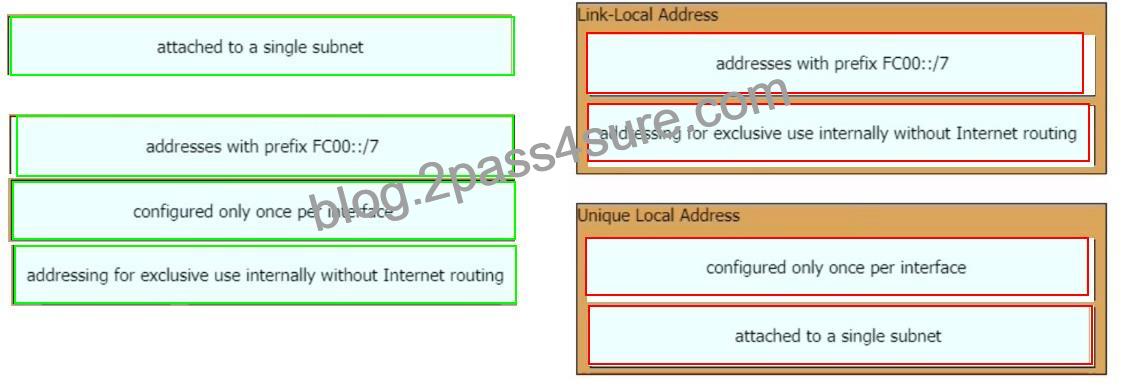

NO.284 Drag and drop the IPv6 address type characteristics from the left to the right.

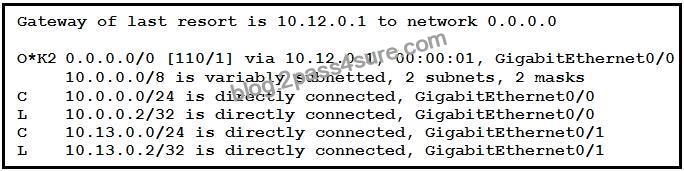

NO.285 Refer to the exhibit. If configuring a static default route on the router with the ip route 0.0.0.0
0.0.0.0 10.13.0.1 120 command, how does the router respond?

It ignores the new static route until the existing OSPF default route is removed

It immediately replaces the existing OSPF route in the routing table with the newly configured static route

It starts load-balancing traffic between the two default routes

It starts sending traffic without a specific matching entry in the routing table to Gigabit EthernetO/1

Our new static default route has the Administrative Distance (AD) of 120, which is bigger than the AD of OSPF External route (O*E2) so it will not be pushed into the routing table until the current OSPF External route is removed.
For your information, if you don’t type the AD of 120 (using the command “ip route 0.0.0.0 0.0.0.0
10.13.0.1″) then the new static default route would replace the OSPF default route as the default AD of static route is 1. You will see such line in the routing table:
S* 0.0.0.0/0 [1/0] via 10.13.0.1

NO.286 A port security violation has occurred on a switch port due to the maximum MAC address count being exceeded. Which command must be configured to increment the security-violation count and forward an SNMP trap?

switchport port-security vilation access

switchport port-security vilation protect

switchport port-security vilation restrict

switchport port-security vilation shutdown

Explanation
https://www.cisco.com/c/en/us/td/docs/switches/lan/catalyst4500/12-2/25ew/configuration/guide/conf/port_sec.h

NO.287 which function does traffic shaping perform?

it bufers and queues excess packets

it drops packets to control the output rate

it buffers traffic without queuing it

it queues traffic without buffering it

NO.288 Which two task does a router perform when it receives a packet that is being forwarded from one network to another? (choose two)

It encapsulates the layer 2 packet

It examines the MAC address table for the forwarding interface

It removes the layer 2 frame header and trailer

It examines the routing table for the best path to the destination IP address of the packet

It removes the layer3 frame header and trailer

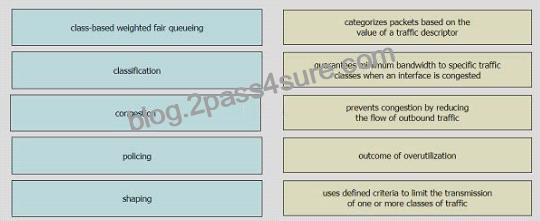

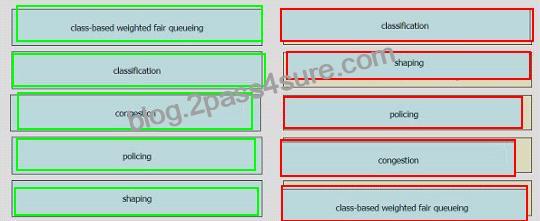

NO.289 Drag and drop the QoS terms from the left onto the descriptions on the right.

NO.290 What is the primary effect of the spanning-tree port fast command?

it enables BPDU messages

It minimizes spanning-tree convergence time

It immediately puts the port into the forwarding state when the switch is reloaded

It immediately enables the port in the listening state

The purpose of Port Fast is to minimize the time interfaces must wait for spanning-tree to converge, it is effective only when used on interfaces connected to end stations.
https://www.cisco.com/c/en/us/td/docs/switches/lan/catalyst3560/software/release/12-
2_55_se/configuration/guide/3560_scg/swstpopt.html

NO.291 An engineer needs to configure LLDP to send the port description time length value (TLV). Which command sequence must be implemented?

switch(config-if)#lldp port-description

switch#lldp port-description

switch(config-line)#lldp port-description

switch(config)#lldp port-description

Section: Network Access

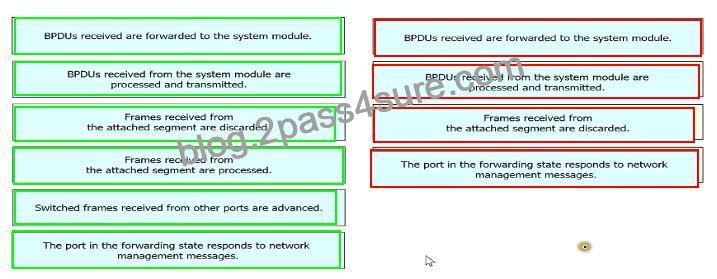

NO.292 Drag and drop the Rapid PVST+ forwarding slate actions from the loft to the right. Not all actions are used.

NO.293 What are two reasons that cause late collisions to increment on an Ethernet interface? (Choose two)

when the sending device waits 15 seconds before sending the frame again

when the cable length limits are exceeded

when one side of the connection is configured for half-duplex

when Carner Sense Multiple Access/Collision Detection is used

when a collision occurs after the 32nd byte of a frame has been transmitted

A late collision is defined as any collision that occurs after the first 512 bits (or 64th byte) of the frame have been transmitted. The usual possible causes are full-duplex/half-duplex mismatch, exceeded Ethernet cable length limits, or defective hardware such as incorrect cabling, non- compliant number of hubs in the network, or a bad NIC.
Late collisions should never occur in a properly designed Ethernet network. They usually occur when Ethernet cables are too long or when there are too many repeaters in the network.
Reference: https://www.cisco.com/en/US/docs/internetworking/troubleshooting/guide/tr1904.html

NO.294 How does IPsec provide secure networking for applications within an organization?

It takes advantage of FTP to secure file transfers between nodes on the network.

It provides GRE tunnels to transmit traffic securely between network nodes.

It enables sets of security associations between peers.

It leverages TFTP providing secure file transfers among peers on the network.

IPsec (Internet Protocol Security) is a protocol suite that provides secure communication over Internet Protocol (IP) networks. It achieves this by authenticating and encrypting each IP packet within a communication session. One of the key concepts in IPsec is the establishment of security associations (SAs) between peers. Security associations are the combination of algorithms and keys used to secure communication between two devices. They define the security parameters for the communication, including the encryption algorithm, integrity algorithm, and keying information. By establishing these security associations, IPsec ensures confidentiality, integrity, and authenticity of the data being transmitted between network nodes.

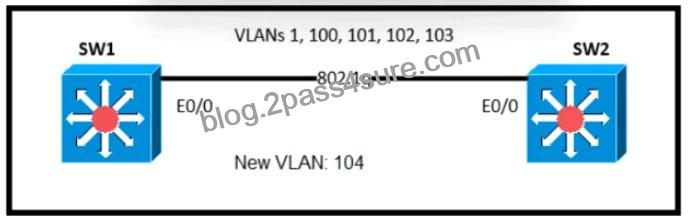

NO.295 Refer to the exhibit.

An engineer is asked to insert the new VLAN into the existing trunk without modifying anything previously configured Which command accomplishes this task?

switchport trunk allowed vlan 100-104

switchport trunk allowed vlan add 104

switchport trunk allowed vlan all

switchport trunk allowed vlan 104

NO.296 A port security violation has occurred on a switch port due to the maximum MAC address count being exceeded. Which command must be configured to increment the security-violation count and forward an SNMP trap?

switchport port-security violation access

switchport port-security violation protect

switchport port-security violation restrict

switchport port-security violation shutdown

https://www.cisco.com/c/en/us/td/docs/switches/lan/catalyst4500/12-2/25ew/configuration/guide/conf/port_sec.h

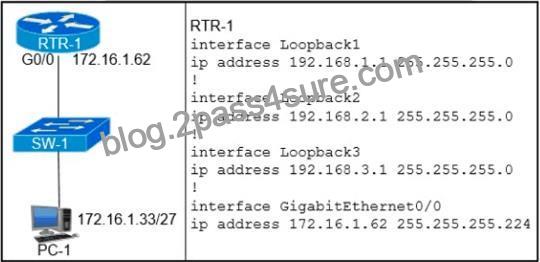

NO.297 Refer to the exhibit.

Which configuration on RTR-1 denies SSH access from PC-1 to any RTR-1 interface and allows all other traffic?

access-list 100 deny tcp host 172.16.1.33 any eq 22 access-list 100 permit ip any any interface GigabitEthernet0/0 ip access-group 100 in

access-list 100 deny tcp host 172.16.1.33 any eq 22 access-list 100 permit ip any any line vty 0 15 ip access-group 100 in

access-list 100 deny tcp host 172.16.1.33 any eq 23 access-list 100 permit ip any any interface GigabitEthernet0/0 ip access-group 100 in

access-list 100 deny tcp host 172.16.1.33 any eq 23 access-list 100 permit ip any any line vty 0 15 ip access-group 100 in

NO.298 Refer to the exhibit. How does the router manage traffic to 192.168.12.16?

It chooses the EIGRP route because it has the lowest administrative distance.

It load-balances traffic between all three routes.

It chooses the OSPF route because it has the longest prefix inclusive of the destination address.

It selects the RIP route because it has the longest prefix inclusive of the destination address.

https://subnet.ninja/calculator-results/
192.168.12.16 is outside OSPF 192.168.12.0/28 and would not be a usable IP address in
192.168.12.16/28 network.
Would work for RIP as it is a 30 IP address range.

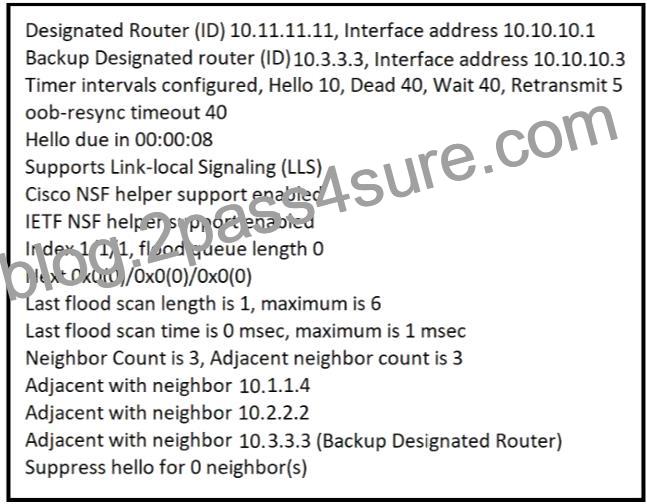

NO.299 Refer to the exhibit.

The show ip ospf interface command has been executed on R1 How is OSPF configured?

The interface is not participating in OSPF

A point-to-point network type is configured

The default Hello and Dead timers are in use

There are six OSPF neighbors on this interface

NO.300 Which type of port is used to connect the wired network when an autonomous AP maps two VLANs to its WLANs?

access

LAG

trunk

EtherChannel

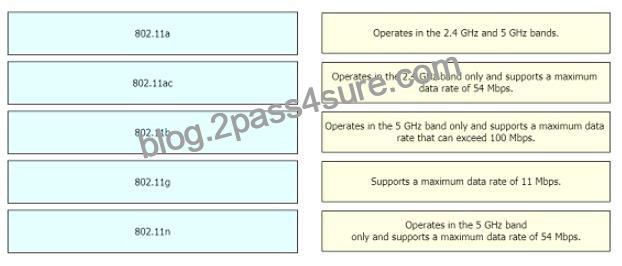

NO.301 Drag and drop the 802.11 wireless standards from the left onto the matching statements on the right

NO.302 R1 does not form an OSPF neighbor adjacency with R2.
Which option would fix the issue?

R1 ethernet0/1 is shutdown. Configure no shutdown command.

R1 ethernet0/1 configured with a non-default OSPF hello interval of 25; configure no ip ospf hello-interval 25

R2 ethernet0/1 and R3 ethernet0/0 are configured with a non-default OSPF hello interval of 25; configure no ip ospf hello-interval 25

Enable OSPF for R1 ethernet0/1; configure ip ospf 1 area 0 command under ethernet0/1

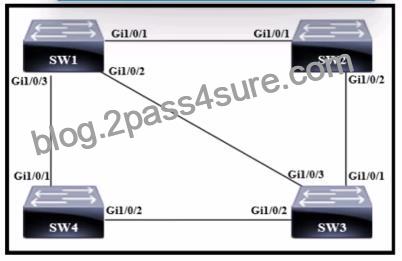

NO.303 Refer to the exhibit.

Which switch becomes the root bridge?
A)

B)

C)

D)

Option A

Option B

Option C

Option D

NO.304 Under normal operations, cisco recommends that you configure switch ports on which vlan?

on the default vlan

on the management vlan

on the native vlan

on any vlan except the default vlan

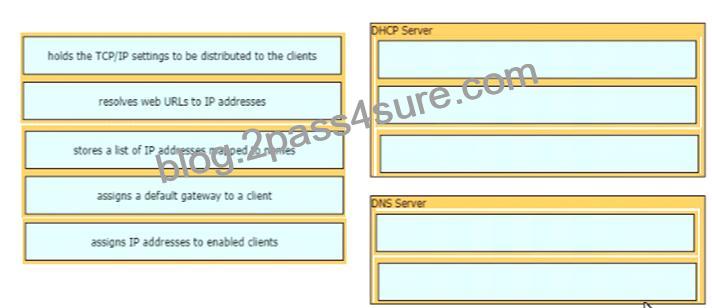

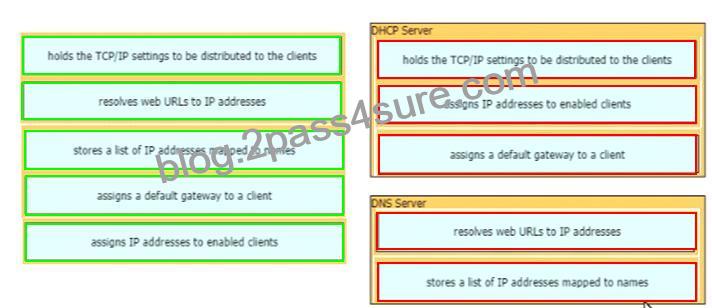

NO.305 Drag and drop the functions from the left onto the correct network components on the right

Loading …

Recommended Knowledge for Cisco 200-301 Exam

There are no official requirements set for the 200-301 certification exam, except for a solid understanding of its topics. However, Cisco recommends that the candidates for this test have a minimum of 1-year experience implementing and administering Cisco solutions. Their familiarity with IP addressing and network basics will be also helpful in passing this exam.
